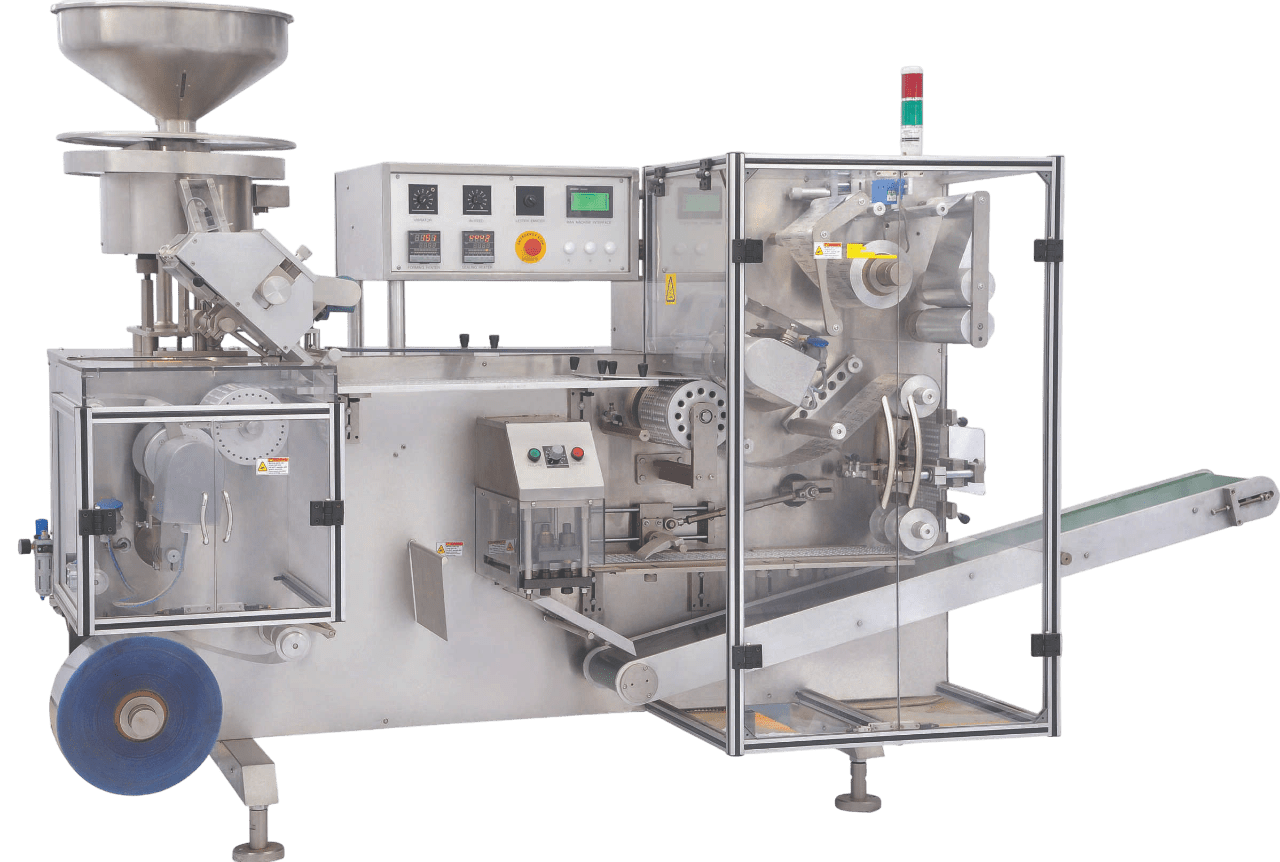

Blister packing machine
240 PLUS
Thermoforming blister packing machine
Max. output240 packs/min
Format area210 mm X 100 mm
Dimensions, mmL 3100 × W 1100 × H 2000
Weight1150 kg
Technical specifications
| Base film width (max.) | 210 mm |
|---|---|
| Base film thickness | 0.25–0.4 mm |
| Sealing foil width (max.) | 206 mm |
| Sealing foil thickness | 0.02–0.04 mm |
| Format area | 210 mm X 100 mm |
| Forming depth | 16 mm |
| Max. output | Round: 240 packs/min; oval: 140 packs/min |
| Machine dimensions, mm | L 3100 × W 1100 × H 2000 |
| Machine weight (approx.) | 1150 kg |
Packaging materials
| Base material | PVC / PVC-PVDC / ACLAR / TRIPLEX / PP |
|---|---|
| Lidding material | Aluminium with heat-sealable lacquer coating |
Utilities
| Compressed air | 7 CFM dry air at 6.0 kg/cm² |
|---|---|
| Chilled water | 150 l/h, 15–20 °C, 2.5 kg/cm² |
| Electrical supply | 7.5 kW, 415 V, 50 Hz, 3 phase + N + E |
