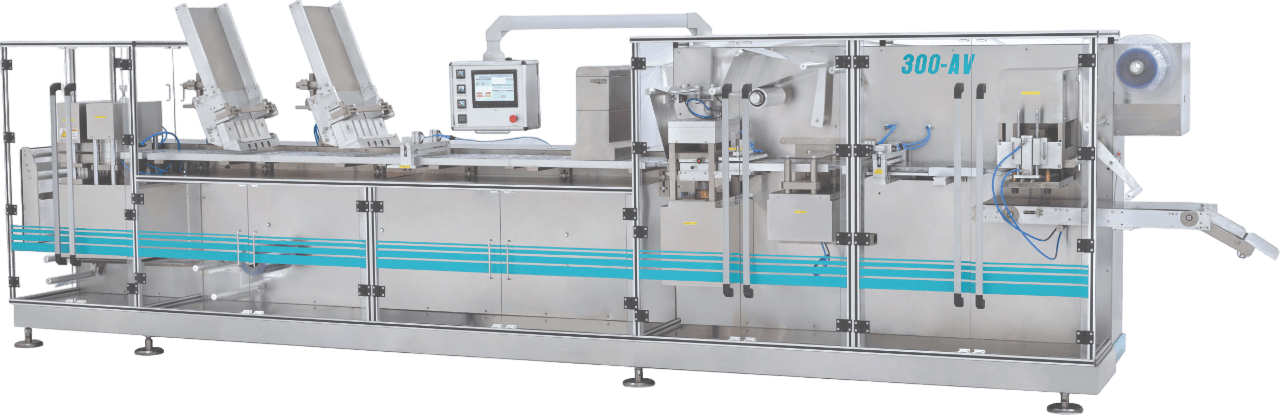

Blister packing machine
300 AV
High-speed deep-forming blister packing machine
Max. output30 strokes/min
Format area300mm X 170 mm
Dimensions, mmL 6500 × W 1600 × H 2200
Weight2900 kg
Technical specifications
| Base film width (max.) | 300 mm |
|---|---|
| Base film thickness | 0.25–0.5 mm |
| Sealing foil width (max.) | 300 mm |
| Sealing foil thickness | 0.02–0.04 mm |
| Format area | 300 mm X 170 mm |
| Forming depth | 32 mm |
| Max. output | 30 strokes/min |
| Machine dimensions, mm | L 6500 × W 1600 × H 2200 |
| Machine weight (approx.) | 2900 kg |
Packaging materials
| Base material | PVC / PVC-PVDC / ACLAR / TRIPLEX / PP |
|---|---|
| Lidding material | Aluminium with heat-sealable lacquer coating, glassine paper |
Utilities
| Compressed air | 40 CFM dry air at 8.0 kg/cm² |
|---|---|
| Chilled water | 210 l/h, 15–20 °C, 2.5 kg/cm² |
| Electrical supply | 12.5 kW, 415 V, 50 Hz, 3 phase + N + E |
