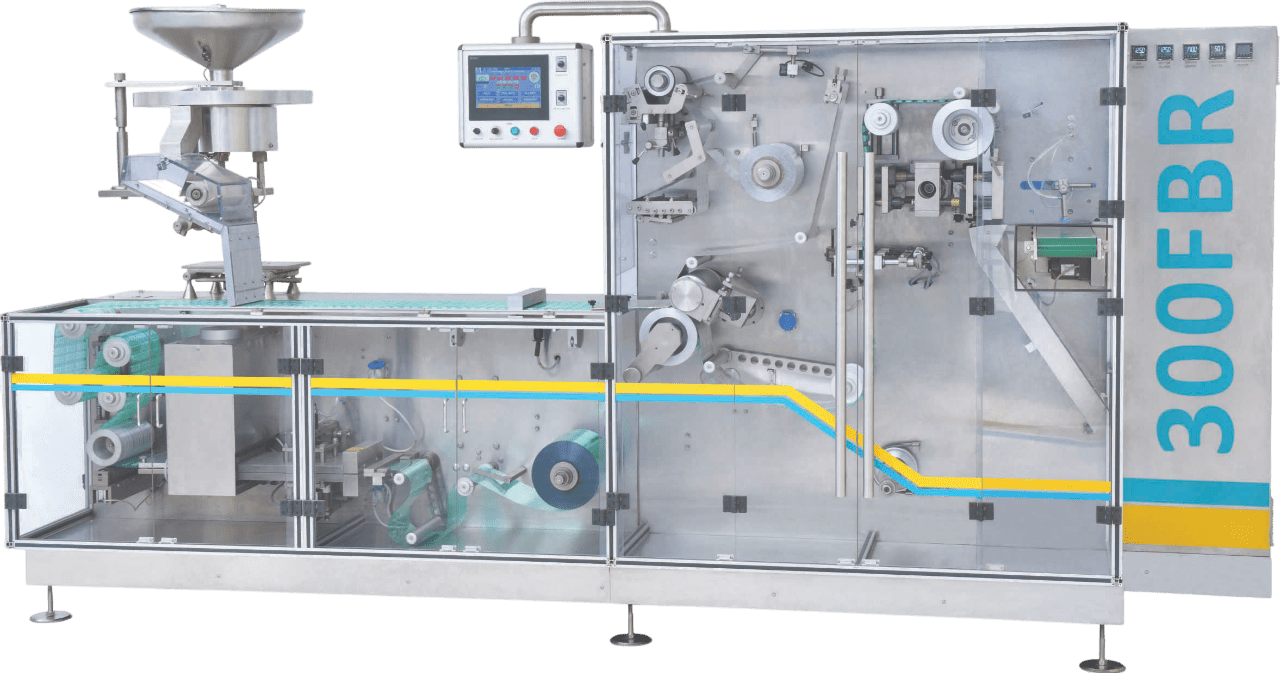

Blister packing machine
300 FBR
High-speed flat-forming, rotary-sealing thermoforming blister machine
Max. output300 packs/min
Format area227 mm X 180 mm
Dimensions, mmL 4700 × W 1200 × H 1950
Weight2100 kg
Technical specifications
| Base film width (max.) | 227 mm |
|---|---|
| Base film thickness | 0.25–0.4 mm |
| Sealing foil width (max.) | 227 mm |
| Sealing foil thickness | 0.02–0.04 mm |
| Format area | 227 mm X 180 mm |
| Forming depth | 12 mm |
| Max. output | 315 packs/min |
| Machine dimensions, mm | L 4700 × W 1200 × H 1950 |
| Machine weight (approx.) | 2100 kg |
Packaging materials
| Base material | PVC / PVC-PVDC / ACLAR / TRIPLEX / PP |
|---|---|
| Lidding material | Aluminium with heat-sealable lacquer coating |
Utilities
| Compressed air | 17 CFM dry air at 6.0 kg/cm² |
|---|---|
| Chilled water | 150 l/h, 15–20 °C, 2.5 kg/cm² |
| Electrical supply | 11 kW, 415 V, 50 Hz, 3 phase + N + E |
