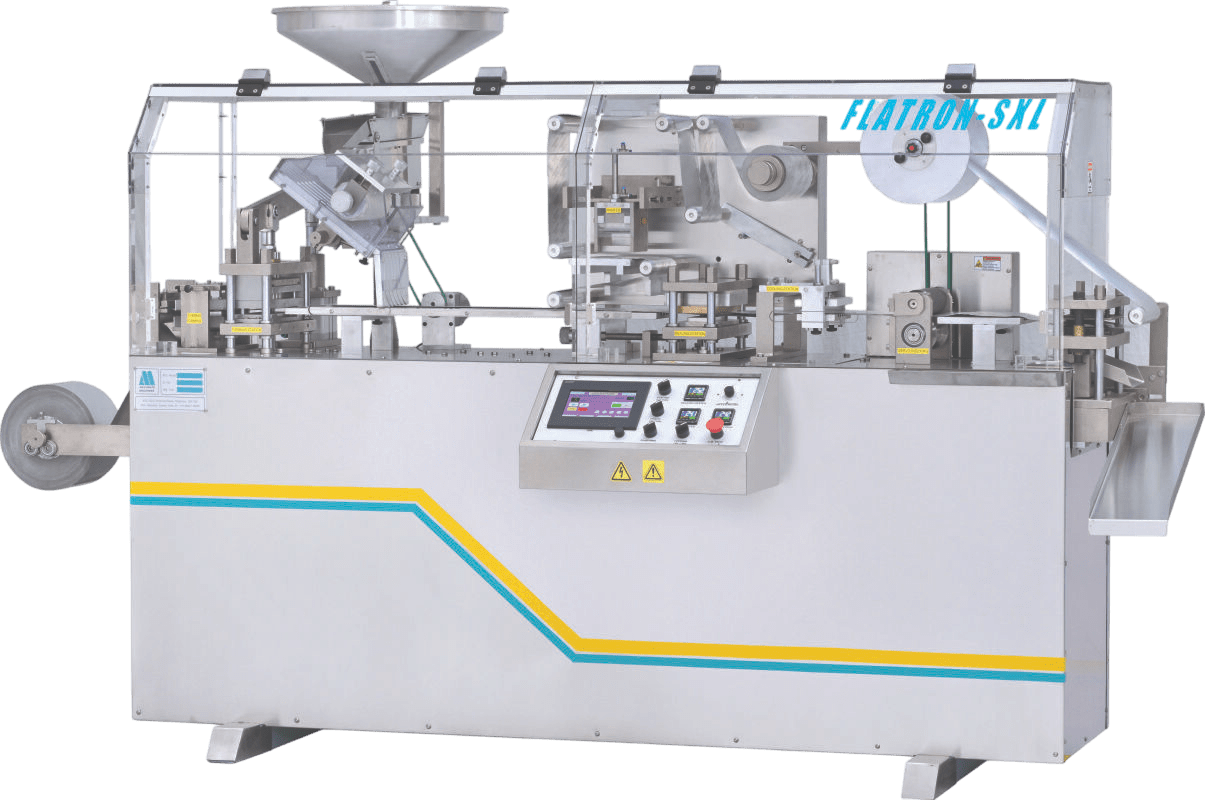

Blister packing machine
FLATRON SXL
Cold-forming & thermoforming blister packing machine
Max. output35 strokes/min
Format area150 mm X 100 mm
Dimensions, mmL 3000 × W 1300 × H 1700
Weight1050 kg
Technical specifications
| Cold forming | Thermoforming | |
|---|---|---|
| Base film width (max.) | Alu 150 mm | PVC 150 mm |
| Base film thickness | Alu 0.13–0.15 mm | PVC 0.20–0.40 mm |
| Base film reel diameter | 440 mm | 440 mm |
| Sealing foil thickness | 0.02–0.04 mm | 0.02–0.04 mm |
| Format area | 150 mm X 100 mm | 150 mm X 100 mm |
| Forming depth | 12 mm | 12 mm |
| Max. output | 35 strokes/min | 35 strokes/min |
| Machine dimensions, mm | L 3000 × W 1300 × H 1700 | |
| Machine weight (approx.) | 1050 kg | |
Packaging materials
| Base material | PVC / PVC-PVDC / ACLAR / TRIPLEX / PP / ALU-ALU |
|---|---|
| Lidding material | Aluminium with heat-sealable lacquer coating |
Utilities
| Compressed air | 27 CFM dry air at 8.0 kg/cm² |
|---|---|
| Chilled water | 150 l/h, 15–20 °C, 2.5 kg/cm² |
| Electrical supply | 5.0 kW, 415 V, 50 Hz, 3 phase + N + E |
