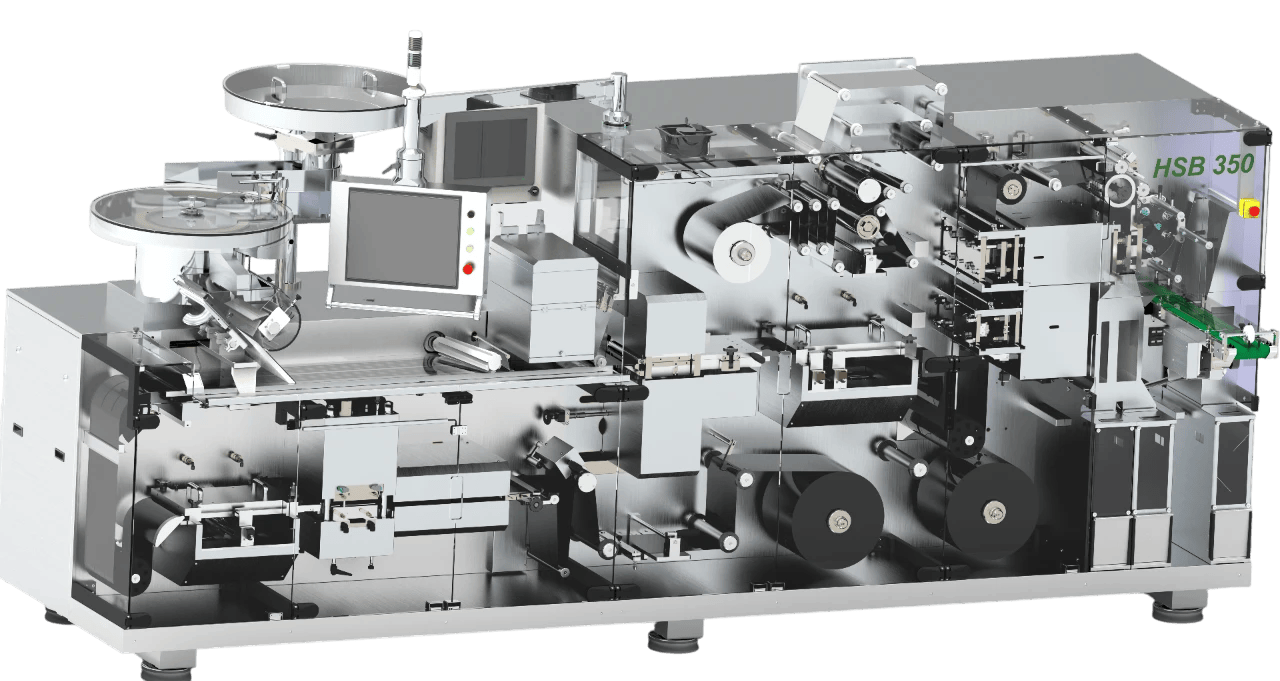

Blister packing machine
HSB 350
High-speed cold-forming & thermoforming blister packing machine
Max. output40–45 cycles/min
Format area274 mm x 168 mm
Dimensions, mmL 4860 × W 1880 × H 2478
Weight4500 kg
Technical specifications
| Cold forming | Thermoforming | |
|---|---|---|
| Base film width (max.) | Alu 280 mm | PVC/PVDC 286 mm |
| Base film thickness | Alu 0.13–0.15 mm | PVC/PVDC 0.20–0.40 mm |
| Base film reel diameter | 440 mm | 440 mm |
| Sealing foil thickness | 0.02–0.04 mm | 0.02–0.04 mm |
| Format area | 274 mm x 168 mm | 274 mm x 168 mm |
| Forming depth | 12 mm | 12 mm |
| Max. output | 40 cycles/min | 45 cycles/min |
| Machine dimensions, mm | L 4860 × W 1880 × H 2478 | |
| Machine weight (approx.) | 4500 kg | |
Packaging materials
| Base material | PVC, PVC/PVDC, PVC/ACLAR, Triplex (PVC/PE/PVDC), cold-forming Alu |
|---|---|
| Lidding material | Aluminium with heat-sealable lacquer — push-through (Alu), peelable (paper), child-resistant |
Utilities
| Compressed air | 25 CFM dry air at 6.0 kg/cm² |
|---|---|
| Chilled water | 150 l/h; 8–16 °C (PVDC) or 15–20 °C (PVC); 2.5 kg/cm² |
| Electrical supply | 24 kW, 415 V, 50 Hz, 3 phase + N + E |
