Capping and crimping heads

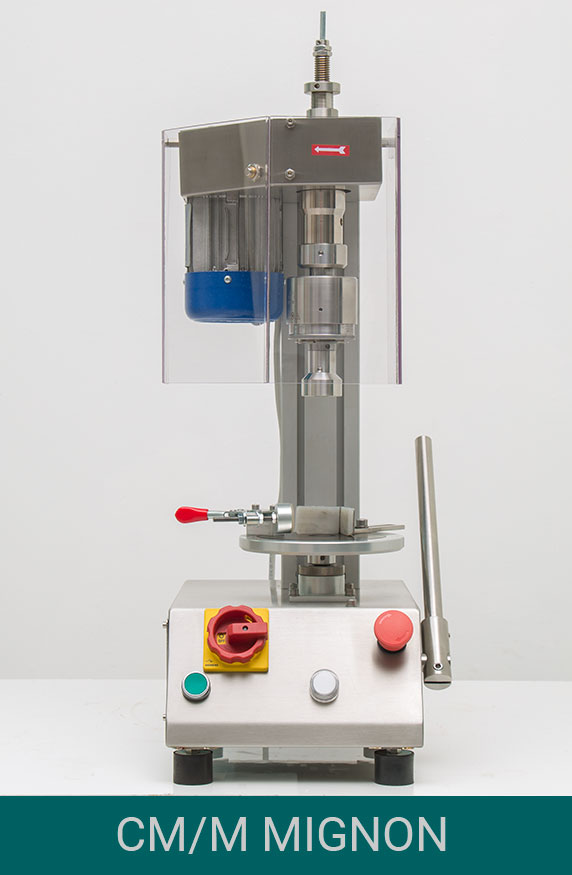

Lever capper CM/M MIGNON
Compact, for bottles up to 120 mm
Electric capping machine for closing pre-threaded plastic caps with a TI/M magnetic head on glass and plastic containers up to 120 mm high. The operator raises the bottle-holding plate with a manual lever, places and locks the container, presses the start button and pulls the lever; the head screws and closes the cap in a few seconds.
Send an enquiry- Bench structure in AISI 304 stainless steel
- 24 V controls
- output 600–700 pcs/hour
- motor 0.09/0.11 kW, single- or three-phase
- max. bottle size D 80 × H 120
- weight 25 kg
- CE standards
Models and technical data
| Model | Head | Max. size, mm | Total height, mm | Threaded connection | Cap dia., mm |
|---|---|---|---|---|---|

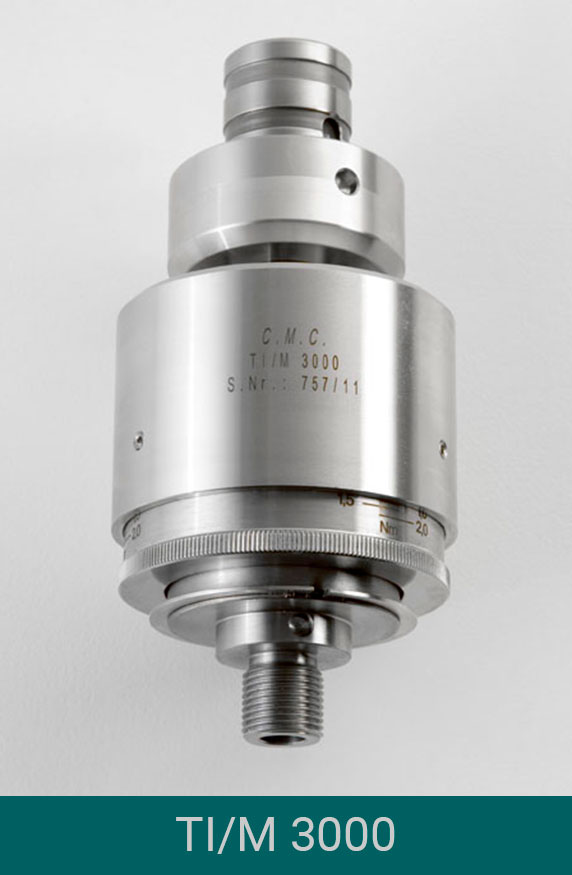

| CM/M MIGNON FM | TI/M 3000 | 300×370 | 850 | M42x1.5 | d. 8–50 |
Gallery and applications
Need help choosing a capping head?
Tell us about your container, cap type and required output — we will select the head, machine and options and send you a quotation.
