Capping and crimping heads
Semi-automatic pneumatic capper CM/P-500
Pneumatic crimping, 500–600 pcs/hour
Semi-automatic pneumatic capping machine for closing glass and plastic containers with Flip-Off, UT and pump metal caps. The descending head is a TB-type pneumatic head, operated by two buttons on the machine table; the cap is crimped in a few seconds.
Send an enquiry- Bench structure in AISI 304 stainless steel
- 6 bar pneumatic controls
- output 500–600 pcs/hour
- max. bottle size D 150 × H 350
- weight 25 kg
- CE standards
Models and technical data
| Model | Head | Max. size, mm | Total height, mm | Threaded connection | Cap dia., mm |
|---|---|---|---|---|---|

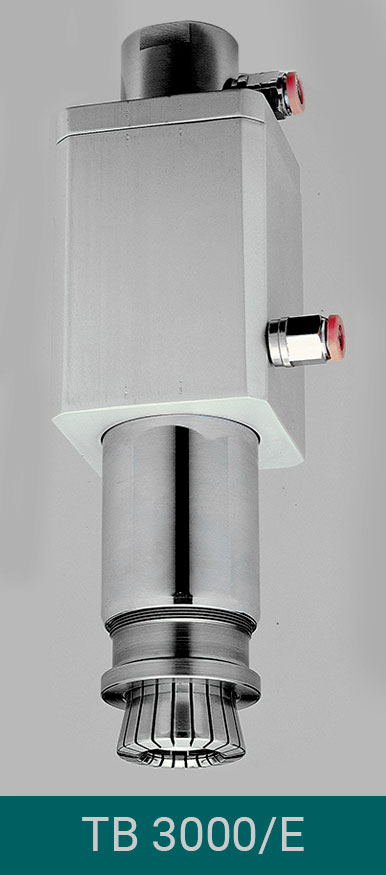

| CM/P 500 | TB 3000 | 500×500 | 900 | M18x1.5 | d. 8–21 |

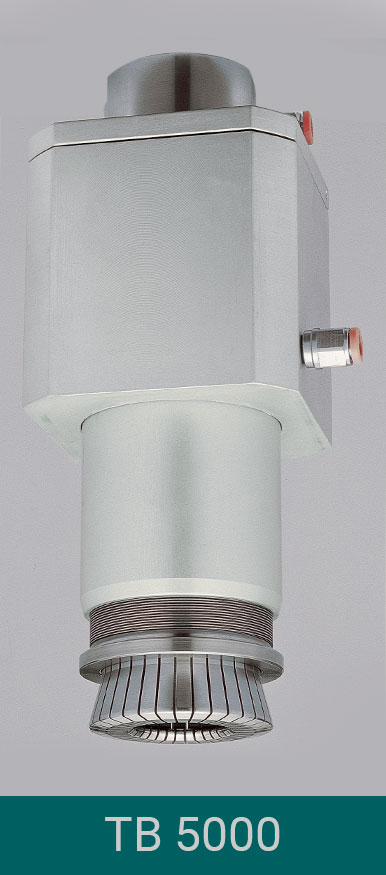

| CM/P 500-5000 | TB 5000 | 500×500 | 900 | M18x1.5 | d. 21–46 |

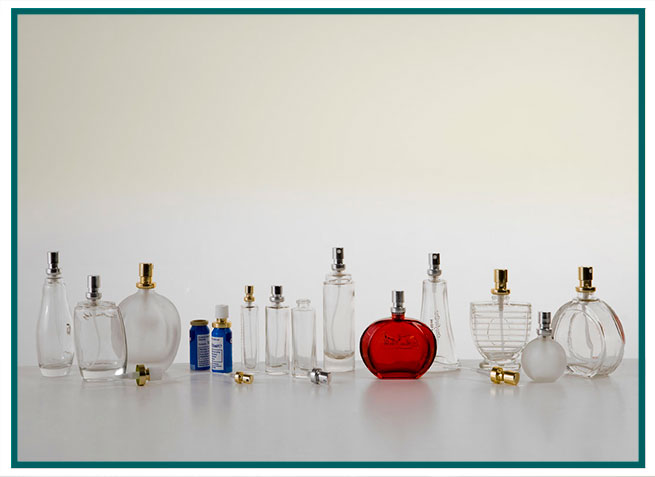

Gallery and applications
Need help choosing a capping head?
Tell us about your container, cap type and required output — we will select the head, machine and options and send you a quotation.
