Capping and crimping heads
Semi-automatic capping machine CM/R-E 500
Electric, 700–800 pcs/hour
Semi-automatic electric capping machine for closing glass and plastic containers with Pilferproof (PFP), UT and Flip-Off metal caps with or without drip-catcher, plastic caps and twist-off caps. The capping head descends to close the cap and rises automatically. The machine can be fitted with three- or four-roller heads, a magnetic head or a cap insertion unit.
Send an enquiry- Bench structure in AISI 304 stainless steel
- 24 V controls
- output 700–800 pcs/hour
- motor 0.25/0.18 kW, single- or three-phase
- max. bottle size D 200 × H 350
- weight 40 kg
- CE standards
Models and technical data
| Model | Head | Max. size, mm | Total height, mm | Threaded connection | Cap dia., mm |
|---|---|---|---|---|---|
| CM/RE 500 3R | TF1000/3 | 500×500 | 1000 | M42x1.5 – M52x1.5 | d. 8–32 |
| CM/RE 500 4R | TF1000/4 | 500×500 | 1000 | M42x1.5 – M52x1.5 | d. 18–50 |

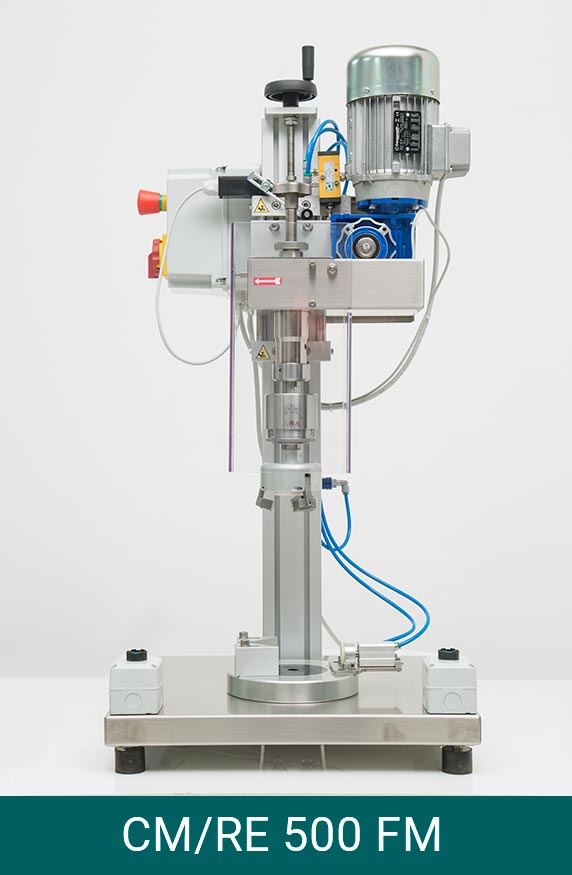

| CM/RE 500 FM | TI/M 3000 | 500×500 | 1000 | M42x1.5 – M52x1.5 | d. 8–100 |

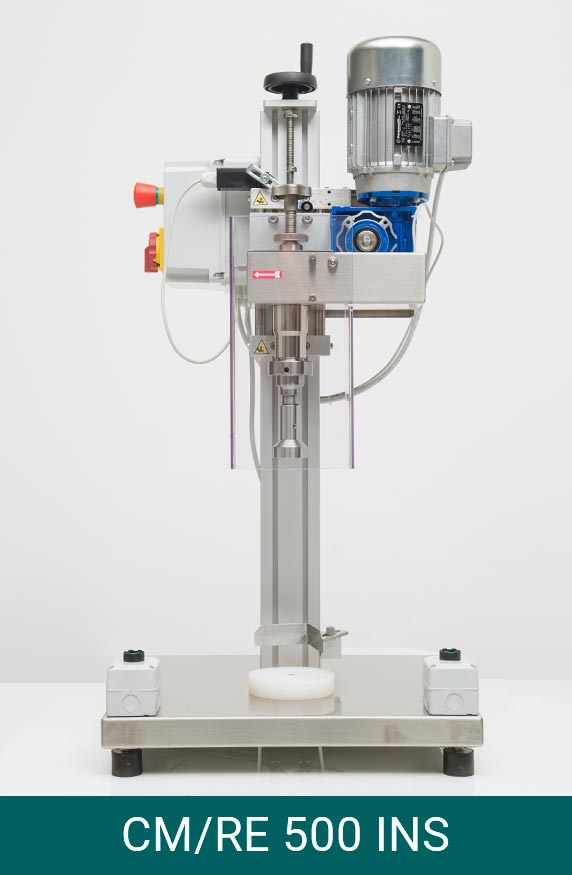

| CM/RE 500 INS | INS CM 289 | 500×500 | 1000 | M42x1.5 – M52x1.5 | d. 8–150 |
Gallery and applications
Need help choosing a capping head?
Tell us about your container, cap type and required output — we will select the head, machine and options and send you a quotation.
