Capping and crimping heads

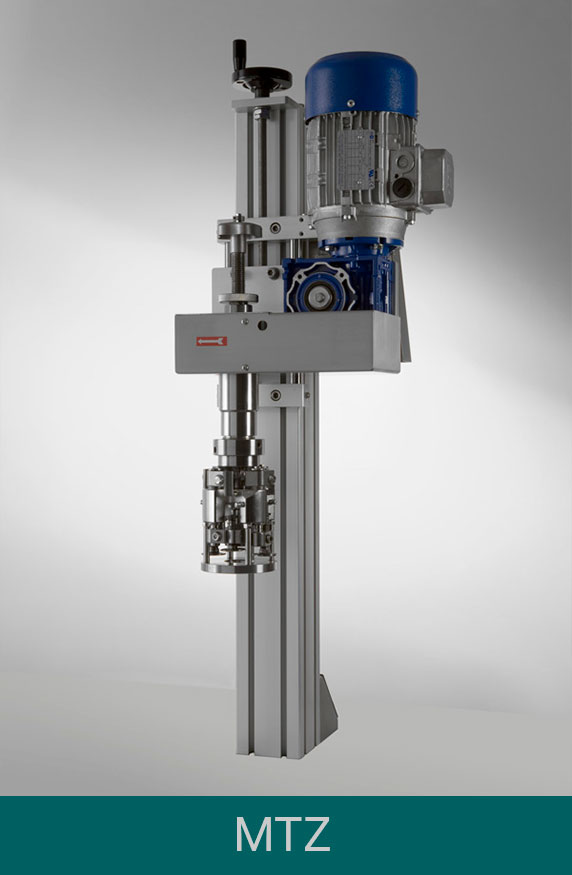

Capping station MTZ
For mounting on automatic machines
Capping station for closing any type of cap in various configurations — with TF roller capping heads, TI/M magnetic clutch heads or TB crimping heads. It can be mounted directly onto the table of an automatic machine and is supplied with head lifting/lowering and rotation motion, adjusted to the sample.
Send an enquiryModels and technical data
| Model | Head | Max. size, mm | Total height, mm | Threaded connection | Cap dia., mm |
|---|---|---|---|---|---|
| MTZ 3R | TF1000/3 | 330×350 | 970 | M42x1.5 – M52x1.5 | d. 8–32 |
| MTZ 4R | TF1000/4 | 330×350 | 970 | M42x1.5 – M52x1.5 | d. 18–50 |

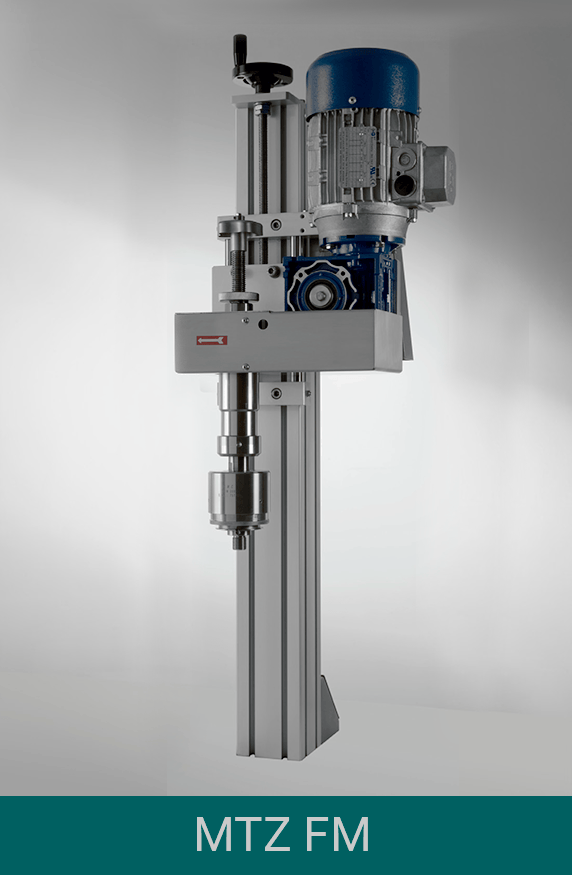

| MTZ FM | TI/M 3000 | 330×350 | 970 | M42x1.5 – M52x1.5 | d. 8–100 |
| MTZ CMP | TB3000 – TB5000 | 230×320 | 750 | M18x1.5 | d. 8/21 – 21/46 |
Gallery and applications
Need help choosing a capping head?
Tell us about your container, cap type and required output — we will select the head, machine and options and send you a quotation.
