Pneumatic crimping heads TB series
For crimping caps from 8 to 46 mm
TB pneumatic crimping heads are used by machine manufacturers in the pharmaceutical and cosmetic sectors, on intermittent machines or multi-head rotary machines. Cap diameter (any material): from 8 mm to 46 mm.
Send an enquiryModels and technical data
| Model | Max. size, mm | Total height, mm | Threaded connection | Shaft dia., mm | Shaft length, mm | Cap dia., mm |
|---|---|---|---|---|---|---|

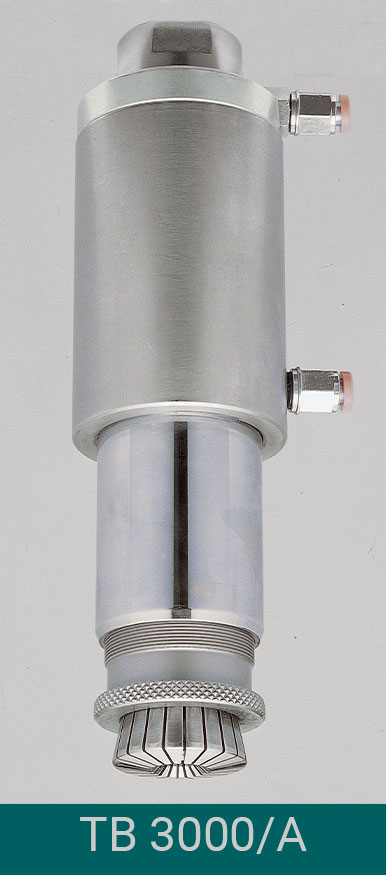

| TB 3000/A | D. 65 | 240 | M18x1.5 | 30 | 40 | d. 8–21 |

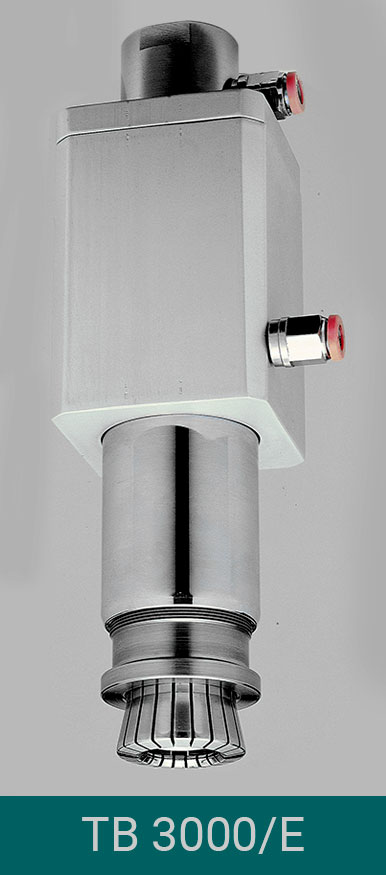

| TB 3000/E | Square 70 | 240 | M18x1.5 | 30 | 40 | d. 8–21 |

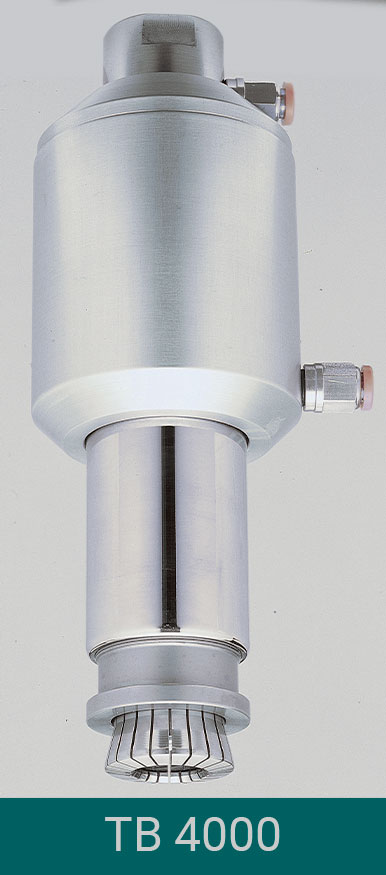

| TB 4000 | D. 85 | 240 | M18x1.5 | 30 | 40 | d. 8–21 |

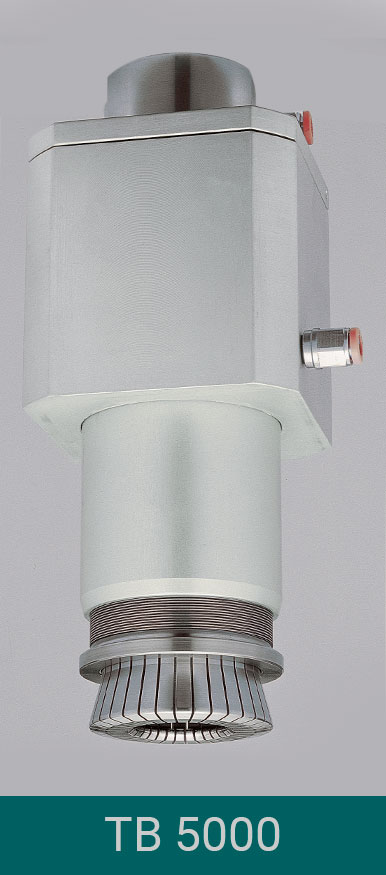

| TB 5000 | Square 110 | 270 | M18x1.5 | 30 | 40 | d. 21–46 |

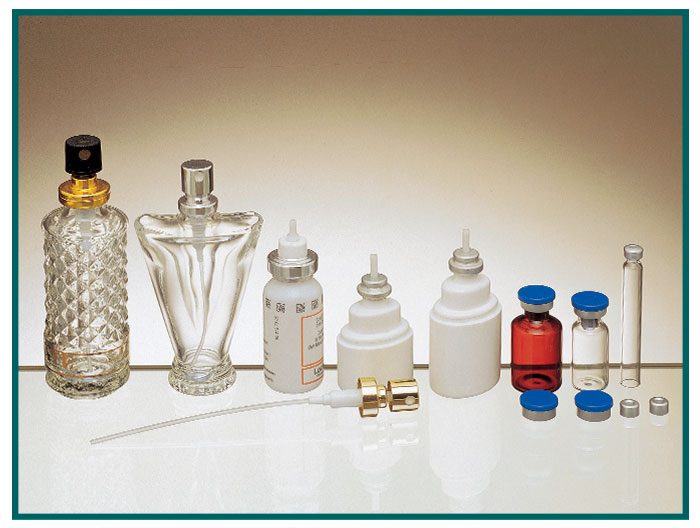

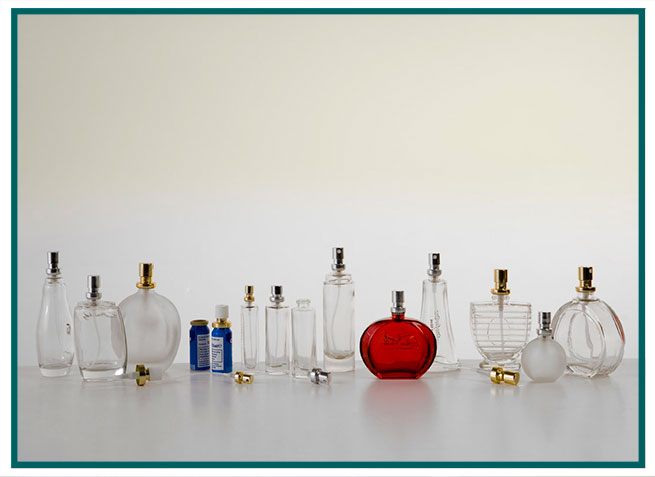

Gallery and applications
