Isolator gloves
Glove-sleeve system
Replace only the glove — keep the sleeve
The glove-sleeve system consists of a sleeve (cuff) to which a glove is attached by means of an adapter ring. Cuff and glove materials can be combined as required. If the glove is damaged, only the glove is replaced while the cuff remains in use. Total length of the system is approx. 800 mm.
Send an enquiryGloves for the system
| Material | Surface | Sizes | Length | Wall thickness |
|---|---|---|---|---|
| BIIR | rough / smooth | 7 / 8 / 9 / 10 / 11 | 350 mm | 0.3 / 0.5 / 0.7 mm |
| BIIR/FKM | smooth | 7 / 8 / 9 / 10 / 11 | 300 / 350 mm | 0.3 / 0.7 mm |
| CSM | smooth | 9 / 10 | 350 mm | 0.4 mm |
Hand shape: fully anatomical.

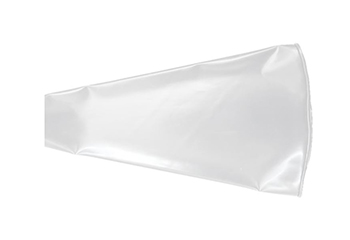

Cuffs for the system
| Material | Wall thickness | Length | Rolled edge | Wrist port dia. | Shoulder port dia. |
|---|---|---|---|---|---|

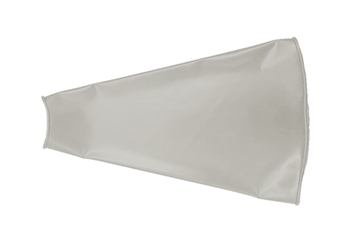

| CSM | 0.4 mm | 520 mm | port side | 90–100 mm | on request |
| BIIR | 0.4 mm | 520 mm | both sides | 90–100 mm | on request |
| XSBR | 0.5 mm | 520 mm | both sides | 90–100 mm | on request |

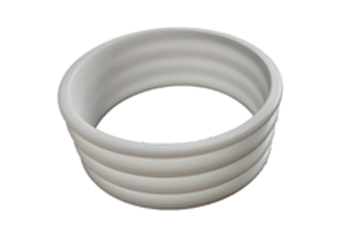

Adapter ring
| Material | POM |
|---|---|
| Inner diameter | 100 mm |
| Outer diameter | 110 mm |
| Height | 40 mm |

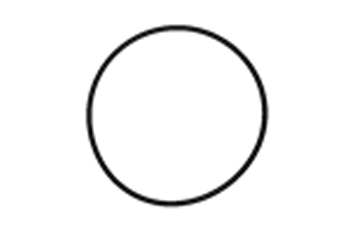

O-ring
| Material | EPDM |
|---|---|
| Dimensions | 85 × 5 mm |

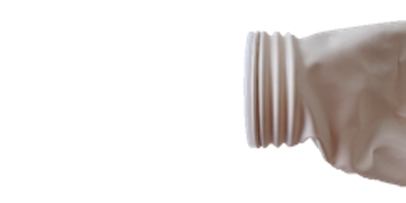

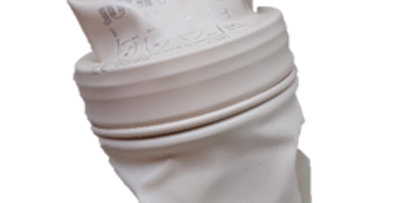

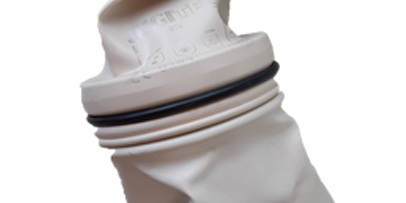

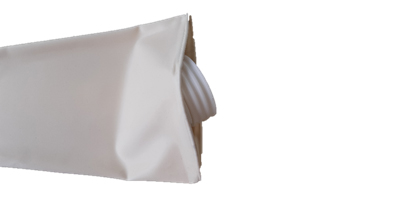

Mounting
Need help choosing isolator gloves?
Tell us about your isolator, port diameter and the substances you work with — we will select the glove material, size and accessories and send you a quotation.
