ColloidMill
Colloid mill for gels, ointments and emulsions
Colloid mill for particle size reduction and de-agglomeration (emulsification). It works on the rotor–stator principle: product passes through a narrow gap where high shear reduces particle size, and particle size is adjusted by changing the gap. Processed product leaves through the drain line and can be recirculated via a three-way valve. Used to grind, disperse and homogenise gels, ointments and high-viscosity fluids.
Send an enquiryKey features
- cGMP design with a small footprint
- Contact parts SS 316/316L, non-contact SS 304
- Tool-free dismantling for cleaning
- Simple rotor–stator gap adjustment
- Grinding accuracy 5–10 µm
- Extra discharge spout for viscous material
- Three-way valve for draining and recirculation
- Optional VFD, flameproof design and water jacket
Technical specifications
| Output | 145–1400 L/h* |
|---|---|
| Hopper capacity | 20 L |
| Rotor and stator | Special conical design |
| Grinding accuracy | 5–10 µm* |
| Motor | 5 HP |
| Contact parts | SS 316 |
* Depends on material.

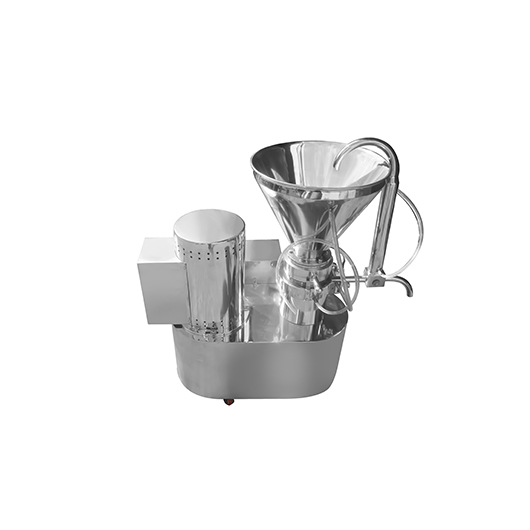

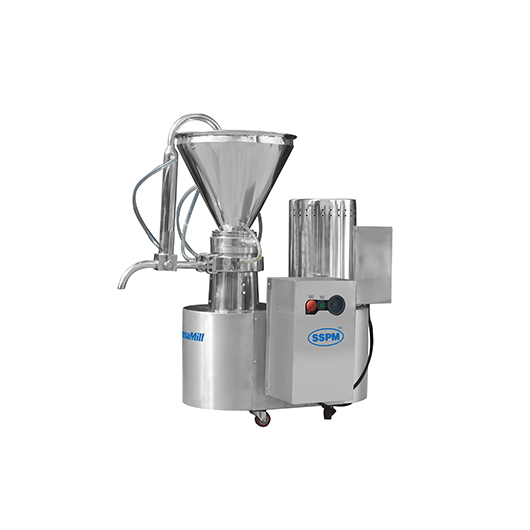

Gallery
