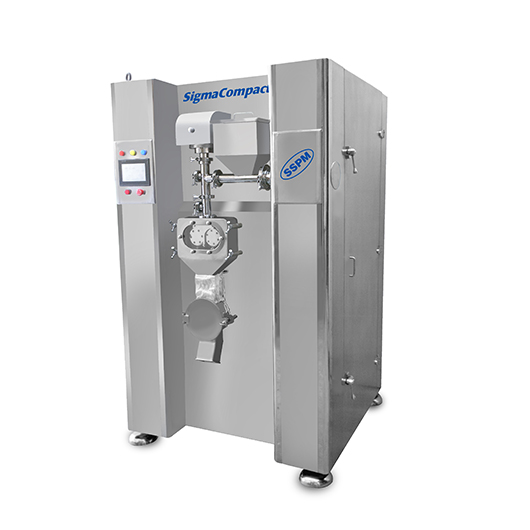

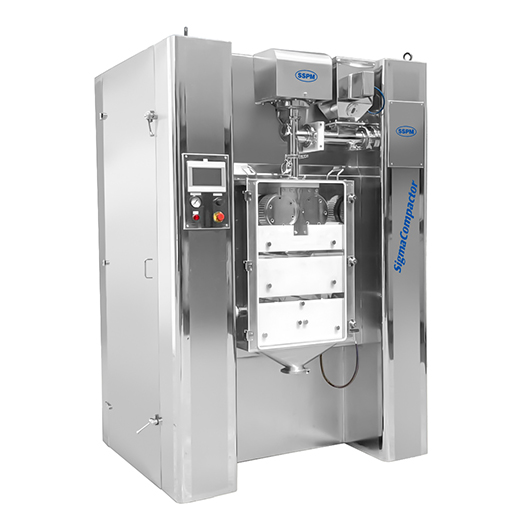

SigmaCompactor
Roll compactor for dry granulation
Encapsulated roll compaction system for dry granulation of powders without liquids — the right choice for moisture- and heat-sensitive substances. One roll is fixed and the other is hydraulically floated, ensuring a stable compaction force. Available with single or twin feed screws, for inline or stand-alone operation, with PLC and HMI control and recipe management. Output ranges from 5 to 300 kg/h depending on the model; an isolator version is available.
Send an enquiryKey features
- Single-screw or twin-screw design
- One fixed and one hydraulically floated roll

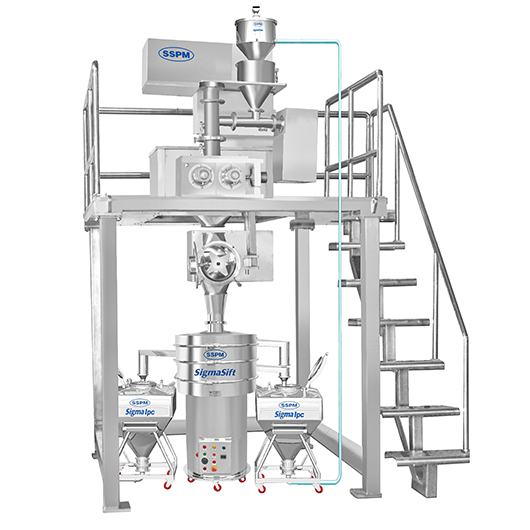

- Inline or stand-alone operation
- PLC and HMI control with recipe management
- Optional vacuum de-aeration
- Optional water-jacketed rolls
- Optional dry granulator, auto-loading and WIP system
- Isolator version for potent substances
Technical specifications
| Model | Output, kg/h | Compaction force, t | Roll motor, HP | Total power, HP |
|---|---|---|---|---|
| RC 50×25 | 5–10 | 2.5 | 1 | 3.75 |
| RC 100×50 | 10–30 | 5.0 | 3 | 7 |
| RC 100×75 | 30–50 | 5.0 | 3 | 7 |
| RC 200×75 | 60–100 | 7.6 | 5 | 11 |
| RC 200×100 | 75–150 | 15 | 10 | 21 |
| RC 200×150 | 100–150 | 15 | 10 | 23 |
| RC 300×200 | 175–250 | 17.5 | 15 | 33 |
| RC 300×300 | 250–300 | 17.5 | 25 | 45 |
Roll speed 1–20 rpm. Data shown for the single-screw version; the twin-screw version has the same output and compaction force (models up to RC 300×200 are cantilever, RC 300×300 is a between-the-wall design).
