Sifting
SigmaHighSift
High-speed safety screen, vacuum-rated design
High-speed safety screen for high-throughput sifting of granules and powders — including as a final check before compression, encapsulation or packaging. Works inline or stand-alone, with sieve speed controlled by a variable frequency drive from 150 to 1500 rpm. A magnetic grill can be added to catch metal contaminants.
Send an enquiryKey features
- Output up to 2000 kg/h
- Inline or stand-alone operation
- Vacuum-rated design for pneumatic conveying
- Speed control via variable frequency drive
- Optional magnetic grill
Technical specifications
| Output | 300–2000 kg/h* |
|---|---|
| Sieve sizes, mm | 1 / 1.5 / 2 / 2.5 / 3 / 4 / 5 / 6, others on request |
| Sieve speed | 150–1500 rpm (VFD) |
| Motor | 5 HP |
* Depends on material and sieve size.

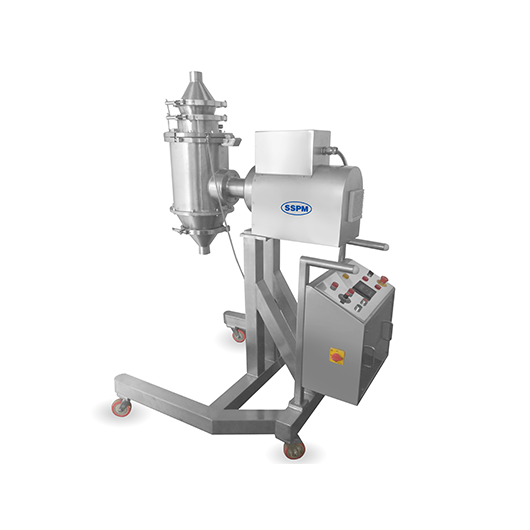

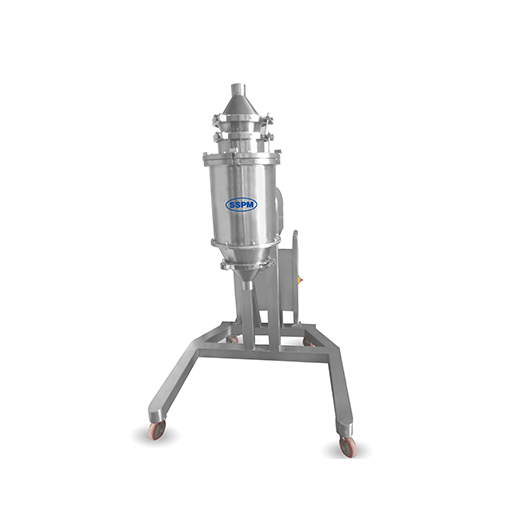

Gallery
