Sifting
SigmaSift

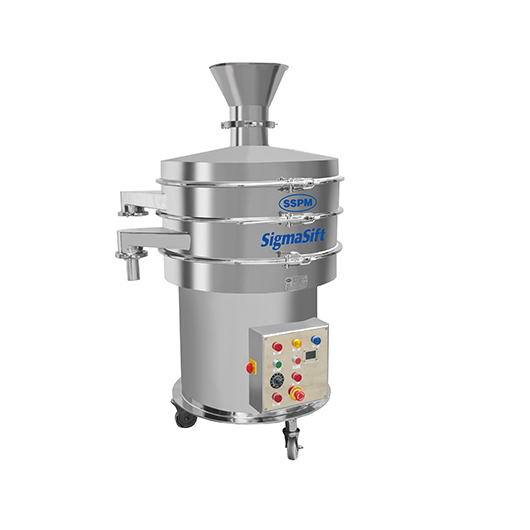

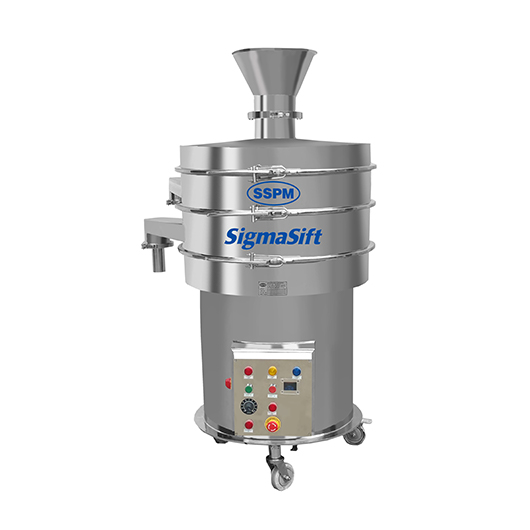

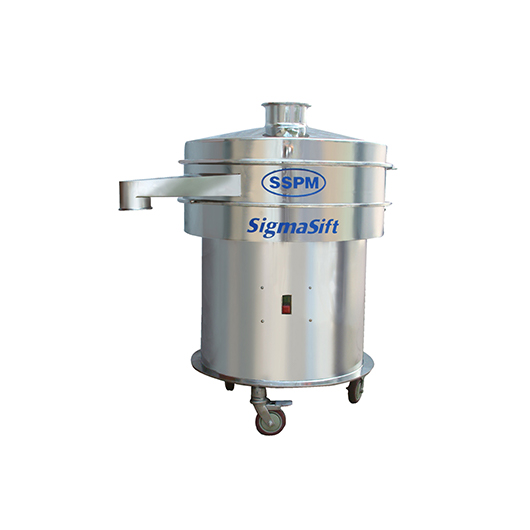

Vibro sifter, vacuum-rated design
High-performance vibro sifter that removes foreign particles and screens pharmaceutical materials to the required size. Vacuum-rated as standard, so sifted material can be transferred to a granulator or blender by the SigmaTrans pneumatic conveying system — reducing exposure, time and manpower. Designed to comply with GMP, FDA, MHRA and PIC/S requirements.
Send an enquiryKey features
- Higher screening capacity
- Lower downtime
- Operator protection
- Low noise levels
- Robust, rigid construction
- Inline or stand-alone operation
- Silicone-moulded, lead-free sieves with positive earthing
- Ultrasonic sieve cleaning system
- Control panel
Technical specifications
| Model | Output, kg/h | Motor, HP | Motor speed, rpm |
|---|---|---|---|
| SigmaSift 12″ | 10–20 | 0.5 | 1440 |
| SigmaSift 20″ | 20–50 | 0.5 | 1350 |
| SigmaSift 30″ | 100–150 | 0.5 | 1350 |
| SigmaSift 36″ | 150–300 | 1 | 1440 |
| SigmaSift 48″ | 200–400 | 2 | 1350 |
Applications: pharmaceuticals, nutraceuticals, chemicals and food.
