Pharmaceutical isolators

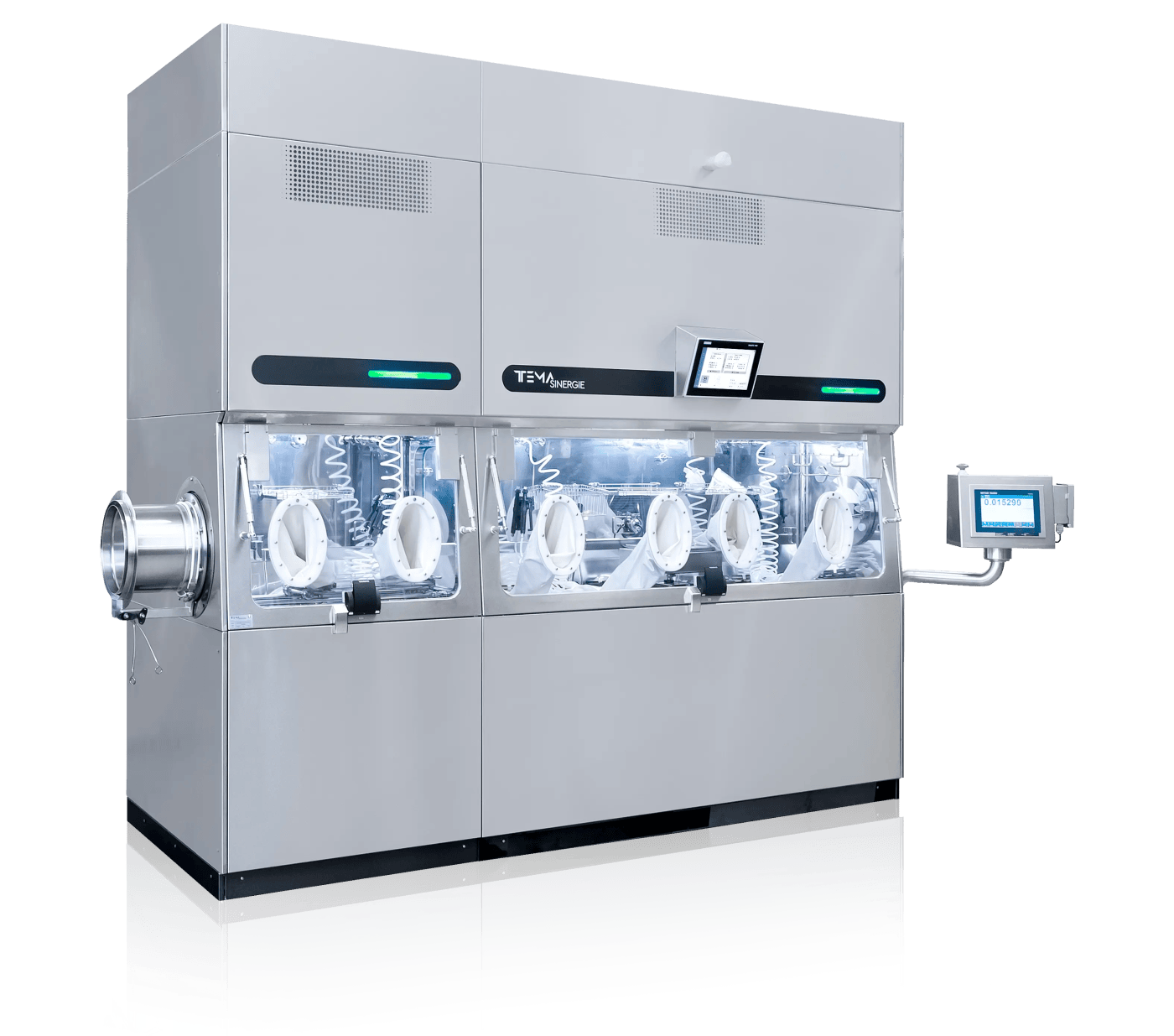

AC-IS
Aseptic containment isolator
A Class A / ISO 5 aseptic containment isolation system, compliant with the strictest cGMP and international regulations, designed for sterile handling of highly potent active pharmaceutical ingredients (HPAPIs). Main components: PLC-controlled system, integrated VPHP generator and distribution circuit, VPHP-resistant anemometer and rH%+T sensor, AISI 304 external control panel, access panels with safety sensors, LED lighting. Options: VPHP sensors for TLV and in-chamber monitoring, integrated scales and terminals, high-containment split butterfly valves, RTP rapid transfer ports.
Send an enquiryKey features
- Guaranteed sterility: HEPA/ULPA filtration, integrated VPHP bio-decontamination and inflatable seals
- Strict containment: inflatable seals, negative pressure gradient and H14 HEPA filters
- Automatic leak test of each chamber per ISO 10648-2 (pressure change method)
- Integration of process equipment: dryers, reactors, scales, split butterfly valves
- Ergonomic design for comfortable and safe operator work
Standards and compliance
| Grade 2 | ISO 10648-2 |
|---|---|
| OEL 5 | ≤ 50 ng/m³ |
| Class A | EU GMP |
| ISO 5 | ISO 14644-1 |
Gallery
Need an isolator or RABS for your process?
Tell us about your product, process and cleanroom class — we will propose a configuration and send you a quotation.
