Eco Press
ECO Press is a cost-effective and versatile tablet compression machine designed for R&D, pilot and production scales. Engineered for efficiency without compromising performance, ECO Press is available in Standard and Automatic Force Rejection (AFR) models, catering to diverse industry needs.

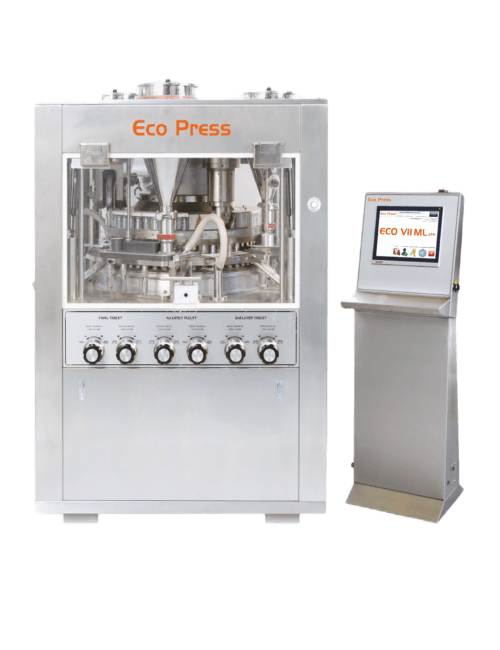

ECO VII ML
Tri-Layer High Production
Key Features:
- Equal Size Force Feeder
- Automatic Lubrication System
- Tablet Parameter Control
Output:
| No. of Stations & Tooling | 49 D | 61 B | ||
|---|---|---|---|---|
| Output/hr (Single Layer) | 176,400 | 219,600 | ||
| Output/hr (Bi-Layer) | 117,600 | 146,400 | ||
| Output/hr (Tri-Layer) | 88,200 | 109,800 | ||
| Main Compression Force — 1st / 2nd / Final Layer | 2 Ton/20 kN | 2 Ton/20 kN | 6 Ton/60 kN | |||

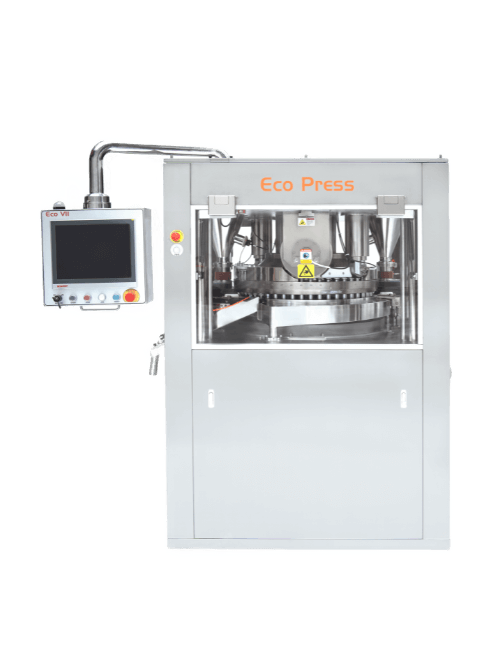

ECO VII / ECO VII AFR
Double Rotary High Production
Key Features:
- Tablet Parameter Control
- Turret with Lower Punch Seal
- Double Paddle Force Feeder
Output:
| No. of Stations & Tooling | 51 D | 61 B | 75 BB | |
|---|---|---|---|---|
| Output/hr (Single Layer) | 367,200 | 439,000 | 540,000 | |
| Output/hr (Bi-Layer) | 91,800 | 109,800 | 135,000 | |
| Pre Compression Force | 3 Ton/30 kN | |||
| Main Compression Force | 10 Ton/100 kN | |||

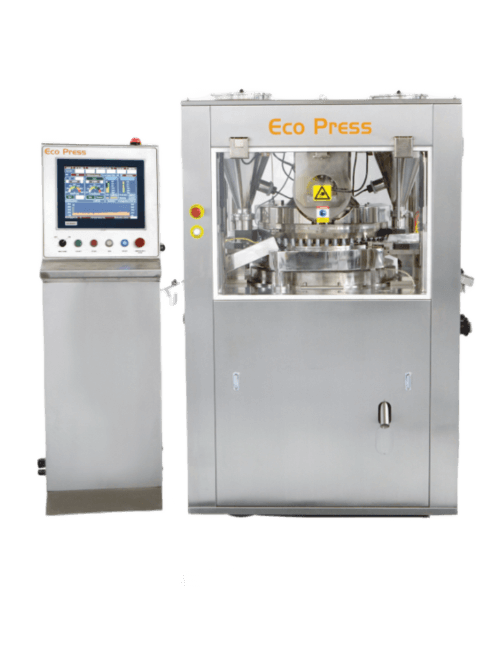

ECO V / ECO V AFR
Double Rotary Medium Production
Key Features:
- Turret with Lower Punch Seal
- Double Paddle Force Feeder
- Variable Upper Punch Penetration
Output:
| No. of Stations & Tooling | 37 D | 45 B | 55 B | |
|---|---|---|---|---|
| Output/hr (Single Layer) | 266,400 | 324,000 | 396,000 | |
| Output/hr (Bi-Layer) | 66,600 | 81,000 | 99,000 | |
| Main Compression Force | 10 Ton/100 kN | 6 Ton/60 kN | |||

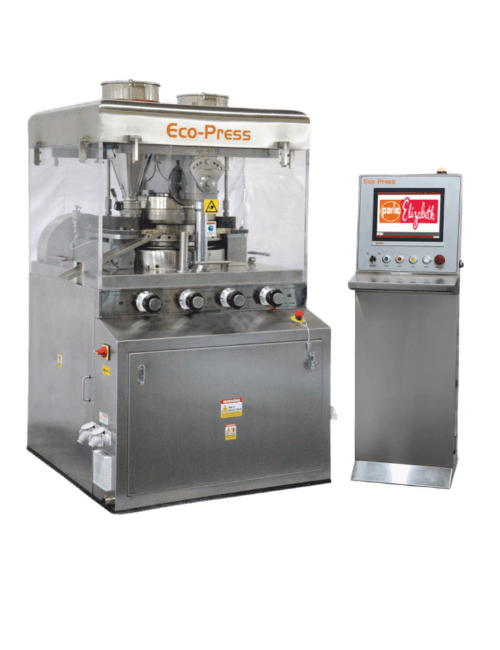

ECO IV / ECO IV AFR
Double Rotary Medium Production
Key Features:
- Tablet Parameter Control from Left and Right Side
- Turret with Lower Punch Seal
- Double Paddle Force Feeder
Output:
| No. of Stations & Tooling | 27 D | 35 B | 45 BB | |
|---|---|---|---|---|
| Output/hr (Single Layer) | 155,520 | 201,600 | 259,200 | |
| Output/hr (Bi-Layer) | 48,600 | 63,000 | 81,000 | |
| Main Compression Force | 10 Ton/100 kN | 6 Ton/60 kN | |||

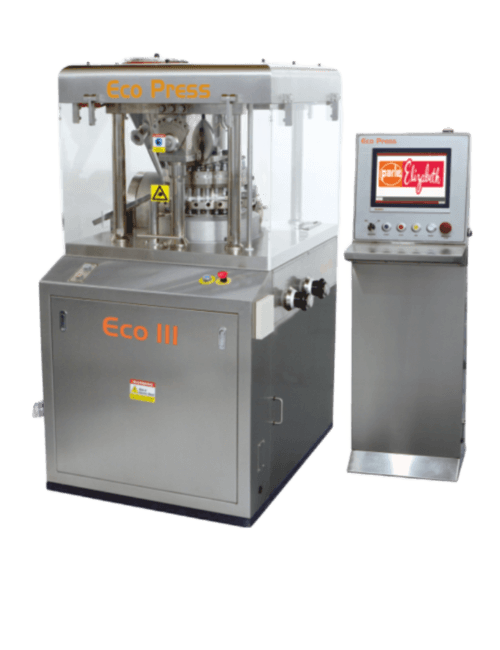

ECO III / ECO III AFR
Single Rotary Small Production
Key Features:
- Hard Anodized Gravity Feeder
- Variable Punch Penetration
- Robust External Worm & Worm Gear System
Output:
| No. of Stations & Tooling | 20 D | 27 B | ||
|---|---|---|---|---|
| Output/hr (Single Layer) | 60,000 | 81,000 | ||
| Main Compression Force | 10 Ton/100 kN | 6 Ton/60 kN | |||

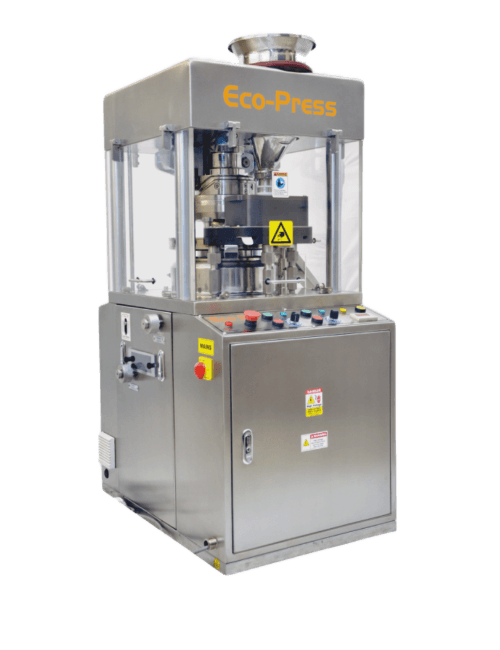

ECO II
Single Rotary R&D/Pilot Production
Key Features:
- Semi-Direct Drive to Turret Through High Torque Reduction Gear Box
- Lockable Control Knobs for Main Compression & Fill Depth Control
Output:
| No. of Stations & Tooling | 8 D | 10 B | 5 D + 5 B | |
|---|---|---|---|---|
| Output/hr (Single Layer) | 14,400 | 18,000 | 9,000 | |
| Pre Compression Force | 2 Ton/20 kN | |||
| Main Compression Force | 6 Ton/60 kN | |||
