Elite Press
High-quality automated tablet presses with automatic weight control, suitable for a wide range of applications in R&D, pilot and production scale. Elite Press is a fully GMP-compliant tablet press by choice of material and design. A proprietary wear-resistant coating on the turret sections and a hardened steel die plate provide long life before repair. A high-torque motor, direct drive and high-strength frame design deliver best-in-class compression under real-life operational loads.

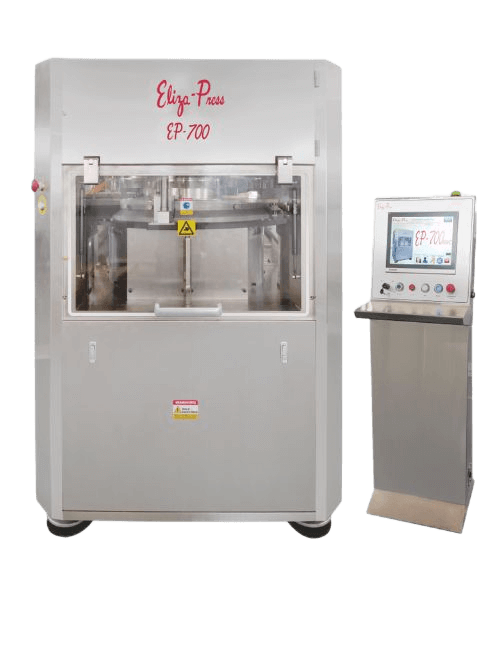

EP 700 AWC
High Production (Double Rotary with a Compact Footprint)
Key Features:
- Compact Footprint
- Motorized Penetration Control
Output:
| No. of Stations & Tooling | 51 D | 61 B | 75 BB | |
|---|---|---|---|---|
| Output/hr (Single Layer) | 459,000 | 549,000 | 675,000 | |
| Output/hr (Bi-Layer) | 153,000 | 183,000 | 275,000 | |
| Pre Compression Force | 10 Ton/100 kN | |||
| Main Compression Force | 10 Ton/100 kN | |||

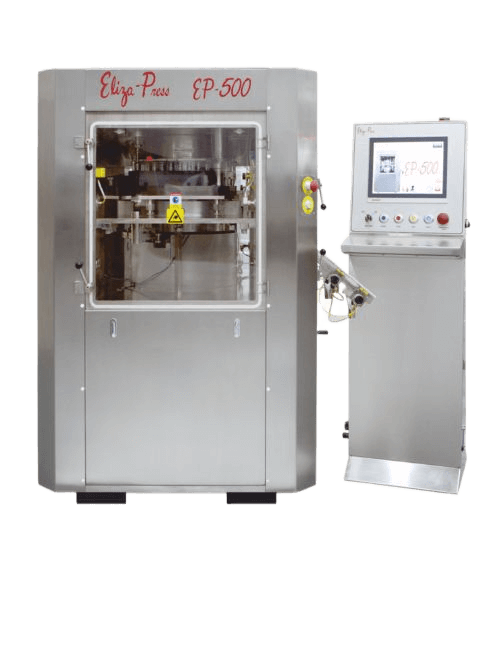

EP 500 AWC
High Production (Mono Layer & Effervescent)
Key Features:
- Good Sample & Reject Tablet Collection
- High Torque Reduction Gearbox
- Online Magnesium Spray & Liquid Paraffin Spray (Optional)
Output:
| No. of Stations & Tooling | 32 D | 38 B | 45 BB | |
|---|---|---|---|---|
| Output/hr (Single Layer) | 134,400 | 159,400 | 189,000 | |
| Tablet Diameter (Single Tip), mm | 5 to 24 | 5 to 16 | 5 to 13 | |
| Pre Compression Force | 10 Ton/100 kN | |||
| Main Compression Force | 10 Ton/100 kN | |||

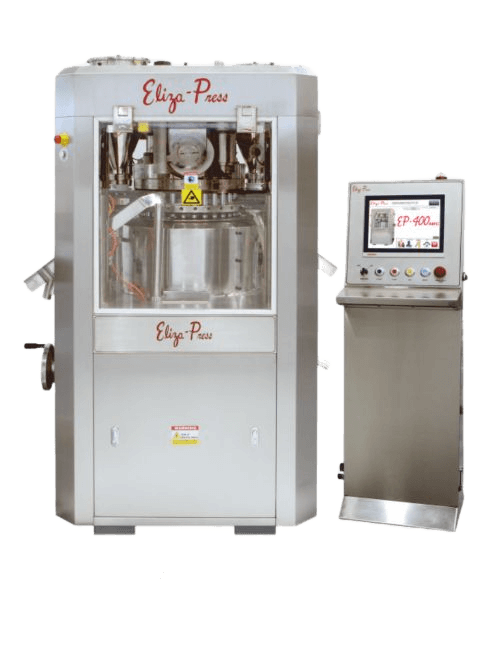

EP 400 AWC
Medium Production (Double Rotary Layer)
Key Features:
- Auto sampling of First Layer Tablet during Bi-Layer Tabletting
- Precise Punch Tracking with Encoder
- Tool Safe Overload Safety
Output:
| No. of Stations & Tooling | 29 D | 37 B | 45 BB | |
|---|---|---|---|---|
| Output/hr (Single Layer) | 174,000 | 222,000 | 270,000 | |
| Output/hr (Bi-Layer) | 52,000 | 66,000 | 81,000 | |
| Pre Compression Force | 3 Ton/30 kN | |||
| Main Compression Force | 10 Ton/100 kN | 6.5 Ton/65 kN | |||

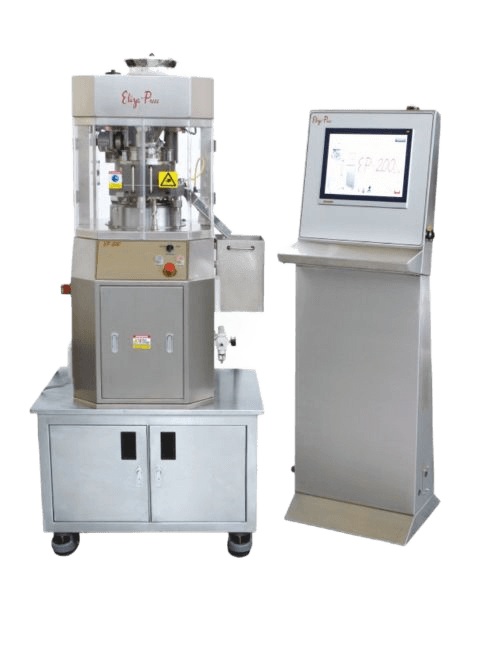

EP 200 AWC
R&D Production (Pilot Single Layer)
Key Features:
- Tool-less Hopper Fitment
- Turret with Lower Punch Seal
- Heavy Duty & Sturdy Construction
Output:
| No. of Stations & Tooling | 8 D | 10 B | 12 BB | 5D + 5B |
|---|---|---|---|---|
| Output/hr (Single Layer) | 14,400 | 18,000 | 21,600 | 9,000 |
| Pre Compression Force | 5 Ton/50 kN | |||
| Main Compression Force | 5 Ton/50 kN | |||

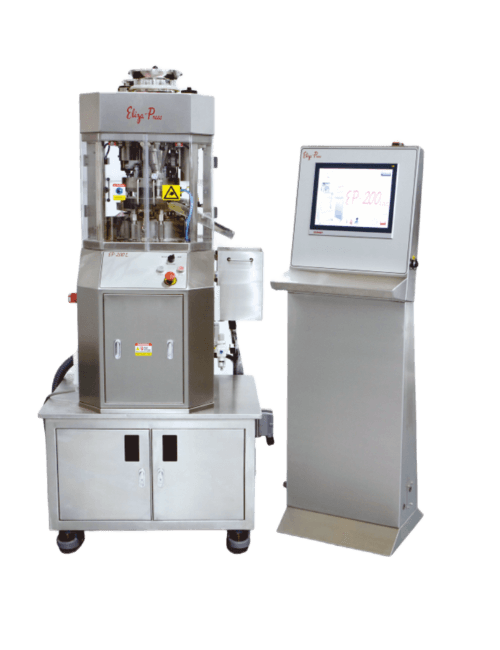

EP 200 L AWC
R&D Production (Pilot Bi-Layer)
Key Features:
- Single Paddle Force Feeder
- Direct Drive to the Turret
- Double Walled CAM Design
Output:
| No. of Stations & Tooling | 9 D | 11 B | 13 BB | 5D + 5B |
|---|---|---|---|---|
| Output/hr (Single Layer) | 16,200 | 19,200 | 23,400 | 9,000 |
| Pre Compression Force | 3 Ton/30 kN | |||
| Main Compression Force | 5 Ton/50 kN | |||
