HiTon
HITON is a powerful range of high-tonnage tablet presses designed for heavy-duty applications. Engineered for precision and durability, HITON delivers superior compression force, making it ideal for large tablets, multi-layer formulations and high-density materials. Available in Standard and Automatic Weight Control (AWC) models, it ensures consistent tablet quality with minimal variation.

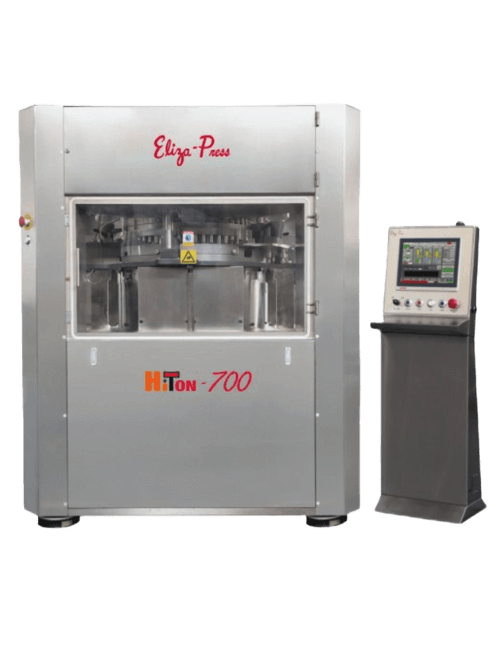

HITON 700 AWC
High Tonnage Double Rotary
Key Features:
- High Tonnage Compression Rolls
- Pull-down Cam with Reduced Heat Generation
- Force Feeder with Independent AC VF Drive
Output:
| No. of Stations & Tooling | 51 D | 61 B | 75 BB | |
|---|---|---|---|---|
| Output/hr (Single Layer) | 459,000 | 549,000 | 675,000 | |
| Output/hr (Bi-Layer) | 153,000 | 183,000 | 275,000 | |
| Pre Compression Force | 10 Ton/100 kN | |||
| Main Compression Force | 15 Ton/150 kN | |||

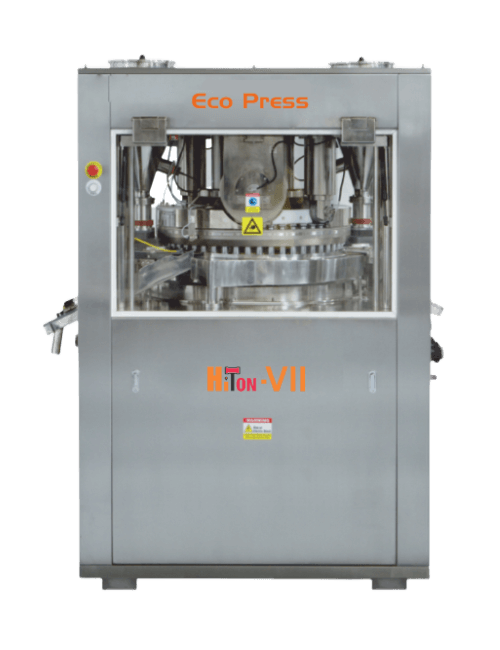

HITON VII
High Production Double Rotary
Key Features:
- Suitable for high-tonnage applications such as slugging, salt, detergent, veterinary, food supplements and battery industries
- Heavy-duty machine housing to withstand heavy compression
- Special anti-corrosive die plate option available
Output:
| No. of Stations & Tooling | 29 / Special Slugger Tooling | |||
|---|---|---|---|---|
| Output (Max), tablets per hour | 139,200 | |||
| Main Compression Force | 12 Ton/120 kN | |||

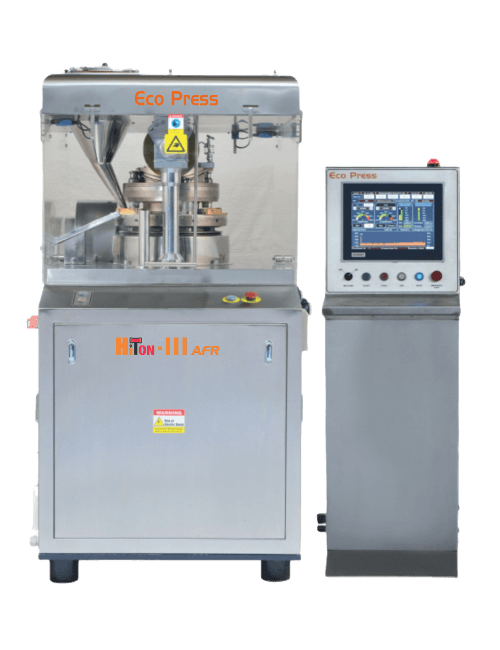

HITON III / HITON III AFR
Single Rotary Slugging/Veterinary
Key Features:
- Turret for Corrosion Resistance
- Hard Anodized Gravity Feeder
- Robust External Worm & Worm Gear System
Output:
| No. of Stations & Tooling | 12 Station Special Tooling | |||
|---|---|---|---|---|
| Output/hr | 18,000 | |||
| Main Compression Force | 12 Ton/120 kN | |||
